Transformations and vectors: Cambridge IGCSE Maths (0580) knowledge organiser

Transformations and vectors for Cambridge IGCSE Maths (0580), on one page.

Download the A4 sheet (PDF)

Key definitions

Translation
Slides a shape without turning it; described by a column vector.
Enlargement
Changes the size by a scale factor from a centre of enlargement.
Column vector
Shows a movement: the top number across, the bottom number up.
Magnitude
The length of a vector: x2+y2.

Key formulas

Vectors: add and subtract column vectors component by component; k(xy)=(kxky)
Magnitude; position vectors|(xy)|=x2+y2, AB→=b−a

Worked example

a=(3,−1) and b=(2,5), as column vectors. Find 2a−b and its magnitude.

  1. 2a=(6,−2)
  2. 2a−b=(6−2,−2−5)=(4,−7)
  3. |2a−b|=16+49

Answer: 2a−b=(4,−7), magnitude 65=8.06 (3 s.f.)

Common mistakes

  • Describing a transformation without all its details, such as the centre, angle and direction of a rotation
  • Reading a column vector the wrong way round: the top number is across

More on what examiners see students get wrong: Examiner Insights.

You should be able to…

  • Reflect shapes in given lines and rotate them about a centre through multiples of 90∘, describing each transformation fully.
  • Enlarge shapes by fractional and negative scale factors from a given centre, and describe such enlargements fully.
  • Recognise and fully describe single transformations, giving the mirror line, centre and angle, column vector or scale factor and centre as needed.
  • Calculate the magnitude of a column vector using Pythagoras' theorem, giving answers exactly as surds or to a set accuracy.
  • Express vectors in terms of given vectors such as a and b by following routes through a diagram, including points dividing lines in a ratio.
  • Reflect shapes in the lines y=x and y=−x, and describe such reflections fully, including within combined transformations.

Try it now

1 of 2

  1. Question 1 of 2
  2. Question 2 of 2

2 quick questions on transformations of shapes. No sign-in needed.

Enlarge the point (3,−1) by scale factor 2, centre the origin.
Choose your answer · keys 1–4

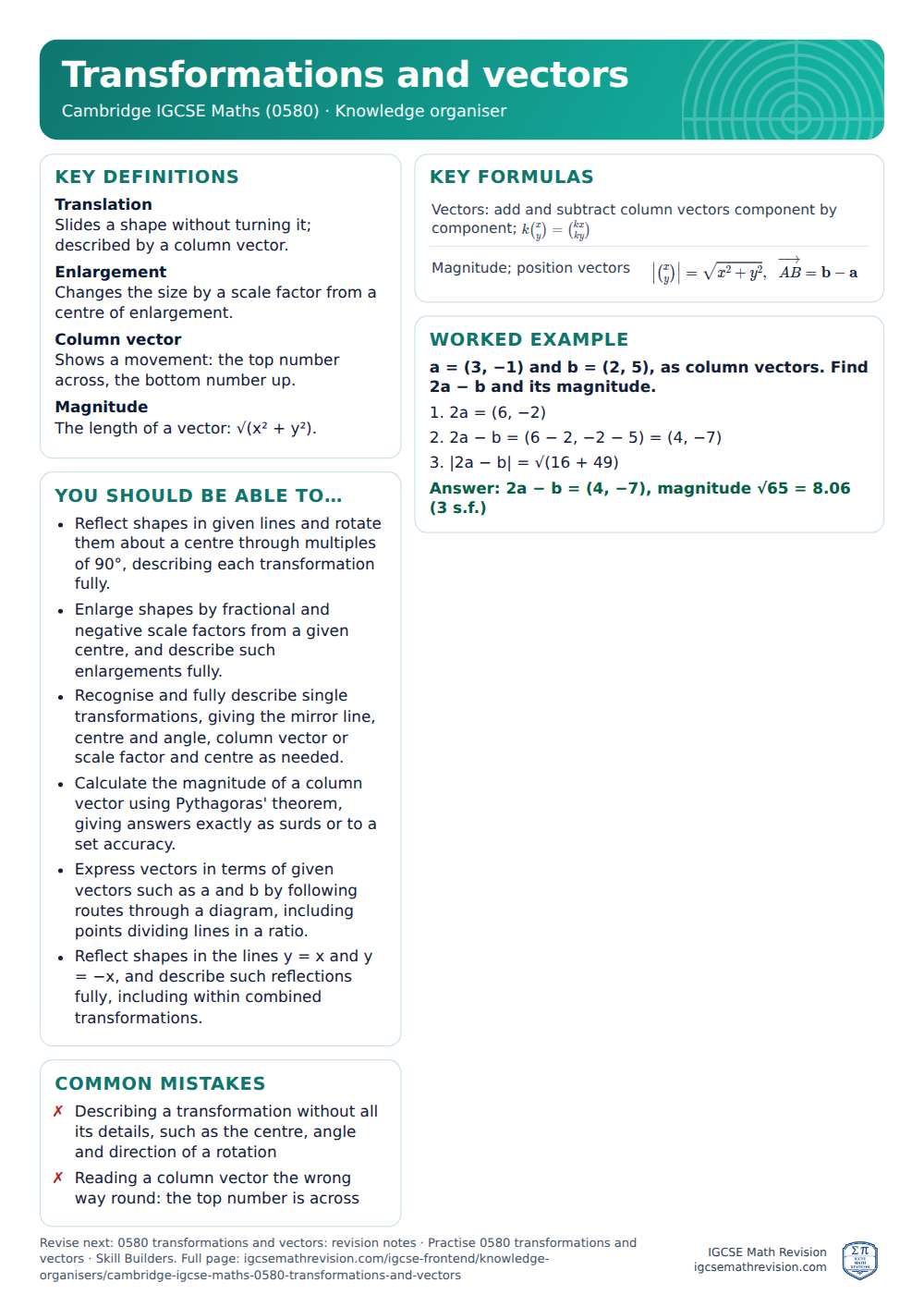

The printable sheet

Transformations and vectors knowledge organiser for Cambridge IGCSE Maths (0580): one A4 page of key definitions, formulas, a worked example and common mistakes
Transformations and vectors knowledge organiser (Cambridge IGCSE Maths (0580)), A4. Download the PDF.
